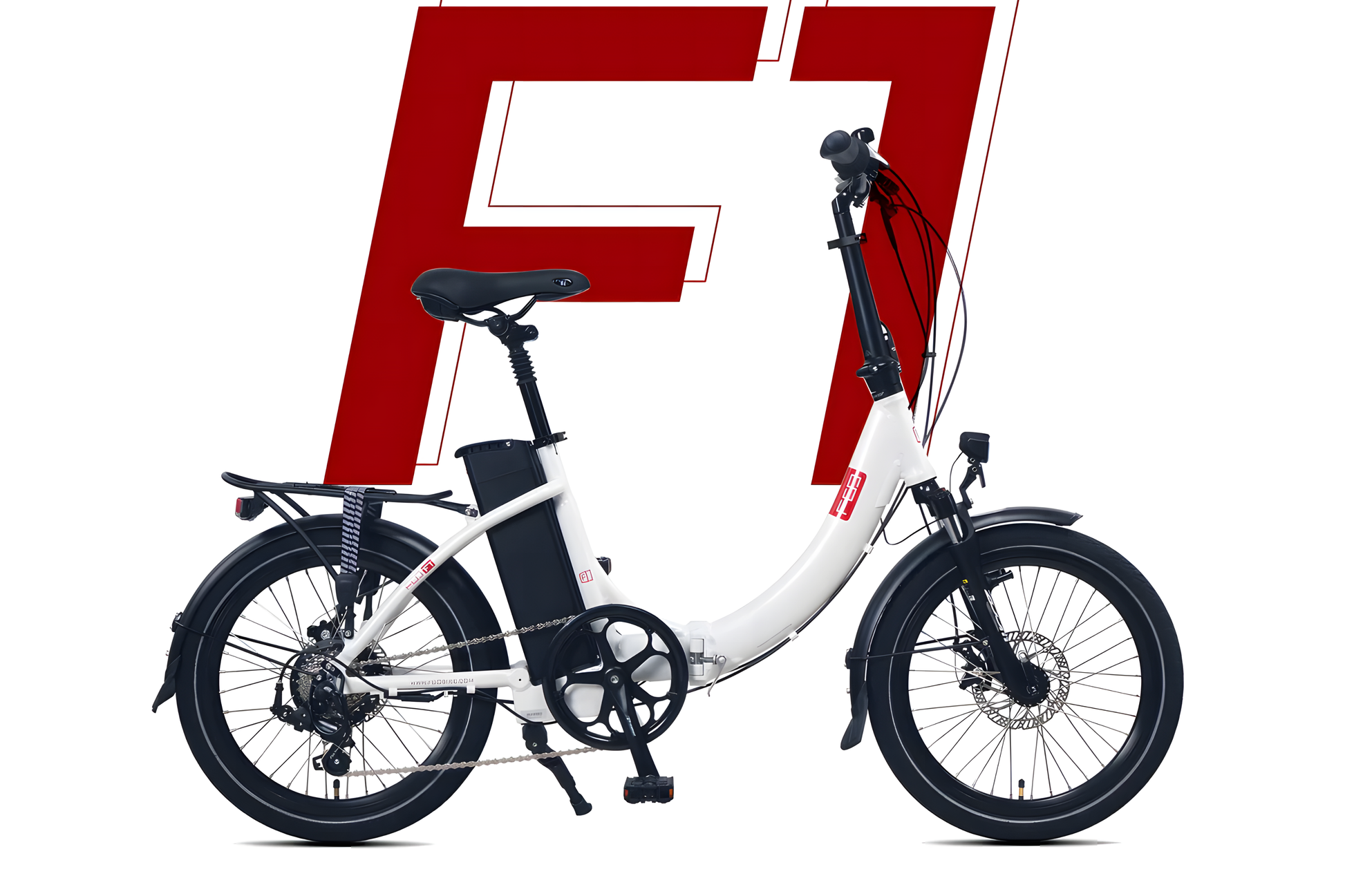

klapprad ncm e bike NCM FOO F1 Folding Bike

Specs

• Motor: Das-Kit Rear Hub Motor, 500W, 60 Nm
• Battery: Removable, lockable 624Wh (48V, 11A)
• Range: 35–90 km (22–56 miles) depending on assist level and conditions
• Top speed: 32 km/h (20 mph)
• Frame: 6061 aluminum alloy, double-butted
• Fork: CH190-20
• Drivetrain: Shimano Tourney, 7-speed, 11–32T; crank 52T with guide
• Display: Das-Kit L7 backlit, bar-mounted
• Controller: Das-Kit CT5-I5 (NCM FOO)
• Brakes: Tektro MD-M280 mechanical disc
• Front light: DH007Plus 70Lux
• Tires: CST 20 x 1.95"
• Stem: Telescopic adjustable
• Saddle: Selle Royal JUSTEK
• Seat post: Folding 27.2mm quick-release suspension
• Pedals: Wellgo foldable
• Rack: Alloy rear rack with bungee cords
• Fenders: Metal full cover
• Charger: Das-Kit 48V 2A
• Bike weight: 50 lb (23 kg)
• Max rider weight: 275 lb (125 kg)
• Battery weight: 6 lb (2.7 kg)
• Charge time: 50% in 3 hours; 100% in 6 hours
• Certification: TÜV UL 2849
• Size: One size 18.11" (5'4"–6'1")

Features

• Foldable design with frame, stem, pedals, and saddle for compact storage and transport
• 500W rear hub motor with 60 Nm torque for urban climbs
• High-capacity 624Wh removable battery with lock for extended range
• Adaptive riding with 6 levels of pedal assist plus a thumb throttle
• Backlit Das-Kit L7 display to monitor speed, distance, and battery
• Comfort-focused components: Selle Royal Justek saddle, ergonomic grips, suspension seat post
• Reliable braking with mechanical disc brakes for precise stopping power
• Front lighting (70Lux) for increased visibility
• Cargo-ready: alloy rear rack and metal full-coverage fenders
• USB port on the battery for on-the-go device charging
• TÜV UL 2849 certified Das-Kit electronics and components

Compatibility

• Wheel/tire size: CST 20 x 1.95" suitable for urban and light off-road use
• Drive system: 1x7 Shimano Tourney with 11–32T cassette
• Battery: Removable 624Wh 48V system with USB charging
• Display/controller: Das-Kit L7 bar display, CT5-I5 controller
• Included accessories: Alloy rear rack, fenders, center-mounted kickstand
• Warranty: Das-Kit components and electronics 1 year; frame 2 years

Physical

• Frame material: 6061 aluminum alloy
• Weight (bike): 50 lb (23 kg)
• Battery weight: 6 lb (2.7 kg)
• Max rider weight: 275 lb (125 kg)
• Foldability: frame, stem, pedals, and saddle fold for compact storage
• Riding size: One size 18.11" (5'4"–6'1")
